LATHE CAZENEUVE HB500 OF 1500-REBUILT
No longer available
LATHE CAZENEUVE HB500 OF 1500-REBUILT
€21,000
Description

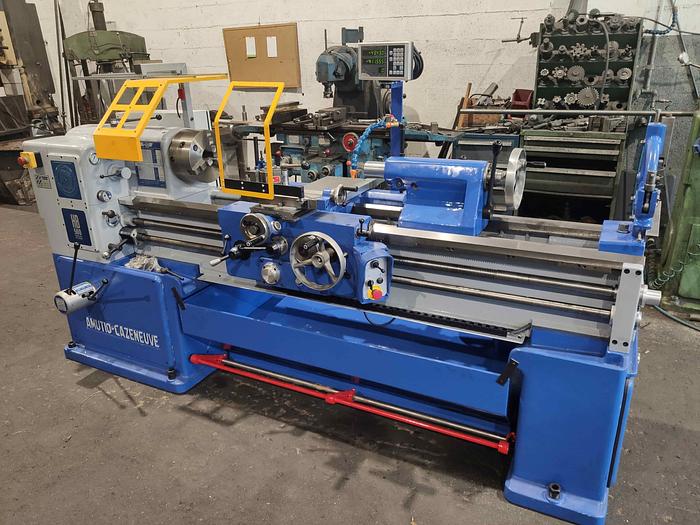

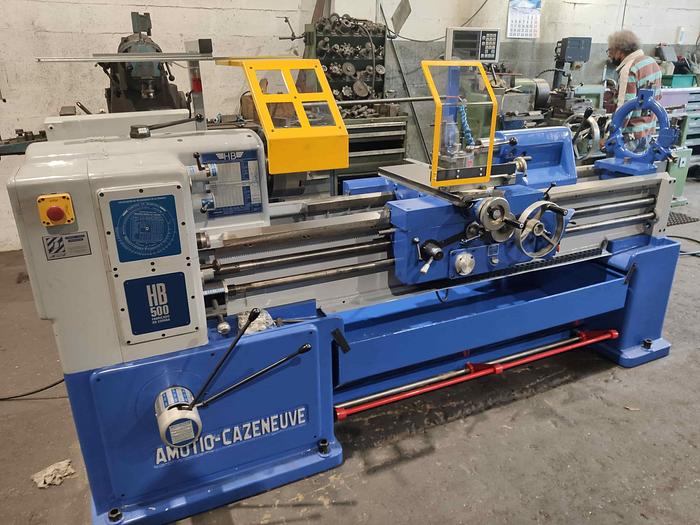

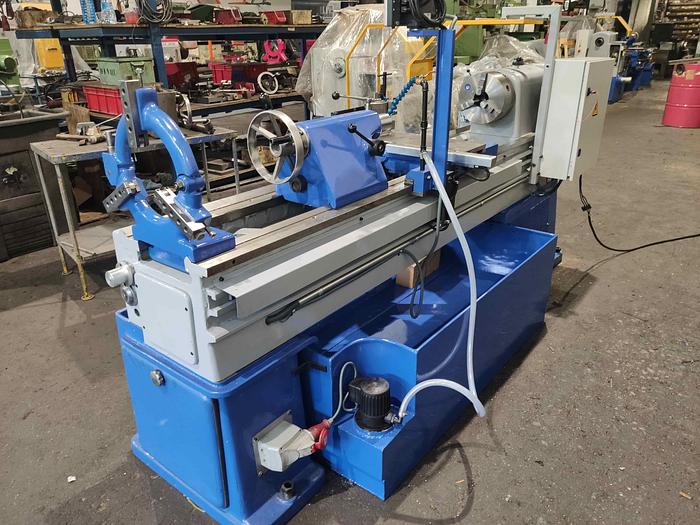

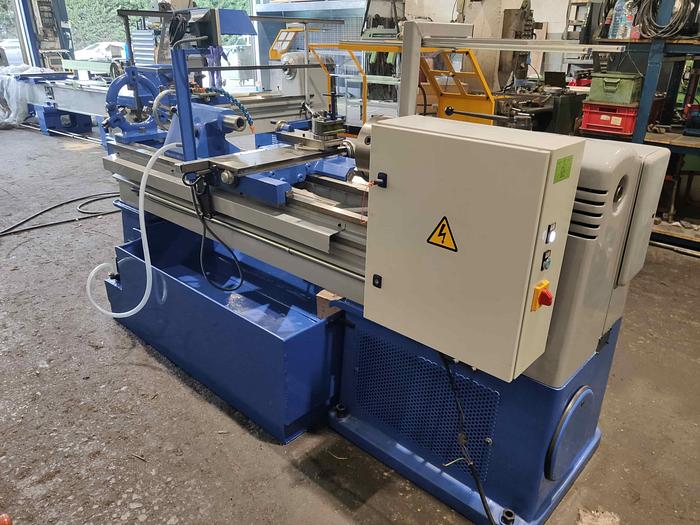

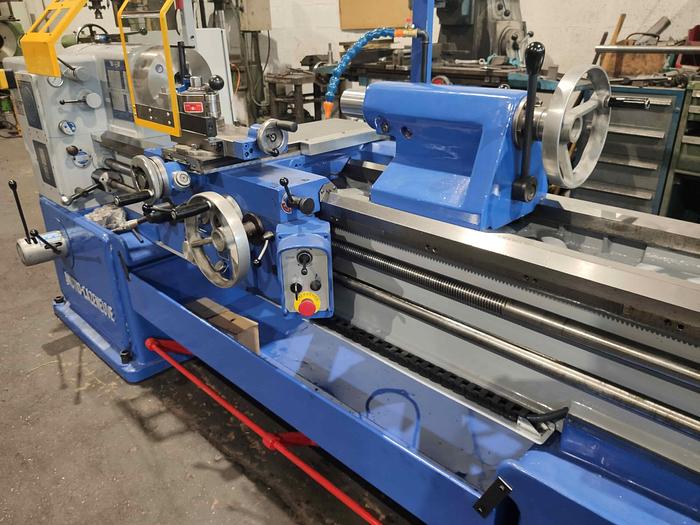

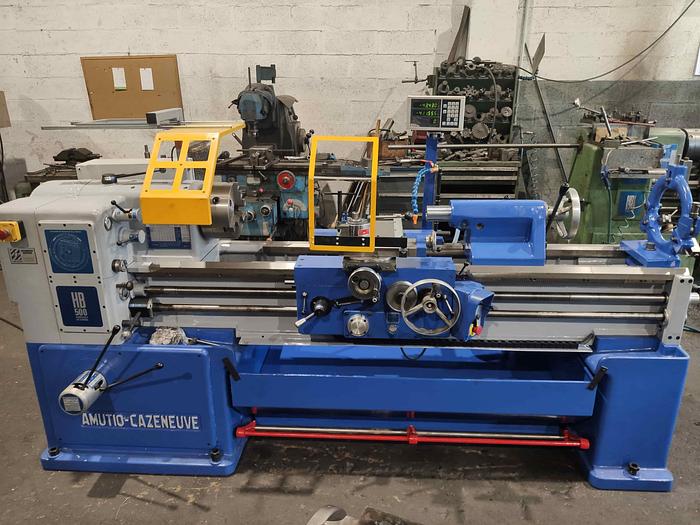

Amutio Cazeneuve HB500 1500mm rebuilt lathe. Equipped with 250mm universal chuck and steady rest. Protections on chuck and carriage and CE certified (RD1215/97). (Optional CE fairing) Optional display.
Specifications
| Condition | Used |
| Stock Number | 00003 |
| Diameter admitted on bench | 500mm. |
| Diameter allowed on carriage | 448mm. |
| Diameter admitted without transverse carriage | 220mm. |
| Height of points | 200mm. |
| Distance between points | 1500mm |
| Inner diameter of the head shaft | 40.5mm. |
| Headstock shaft cone | CM-5 |
| Tailstock cone | CM-5 |
| Width of the bench | 400mm |
| Maximum travel of the cross carriage | 280mm. |
| Maximum course of the steerable carriage | 140mm. |
| Number of headstock spindle speeds | 18. |
| Engine power HP | 12,5-10-7. |
| Machine weight | 1950Kgs. |
| Machine dimensions | 2905x1175x1295. |
| Warranty | 1 year. |
