LATHE CAZENEUVE HB500 OF 1000-REBUILT
No longer available
LATHE CAZENEUVE HB500 OF 1000-REBUILT
€18,500
Description

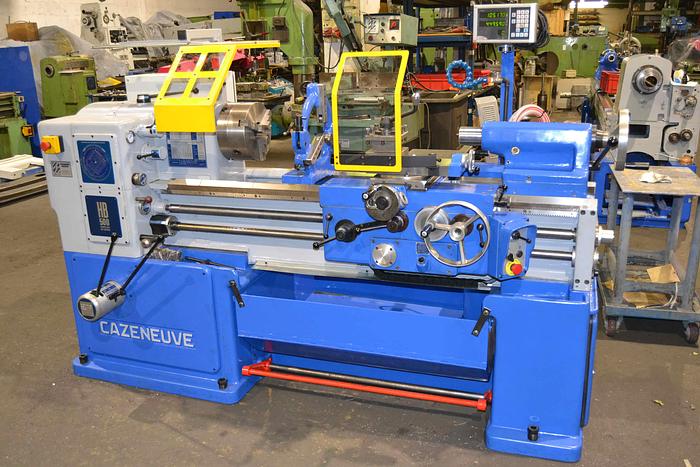

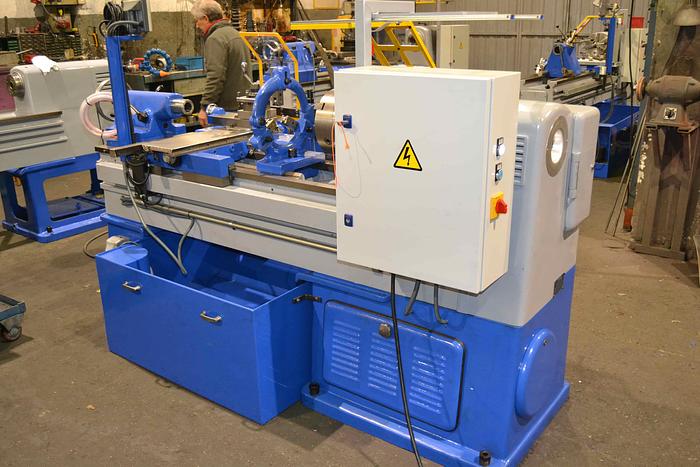

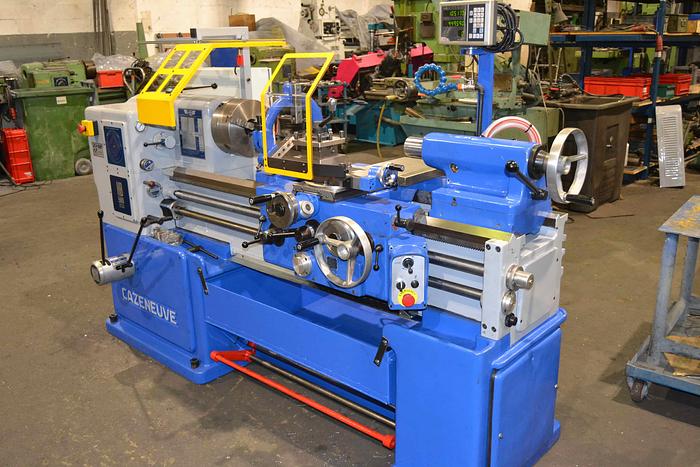

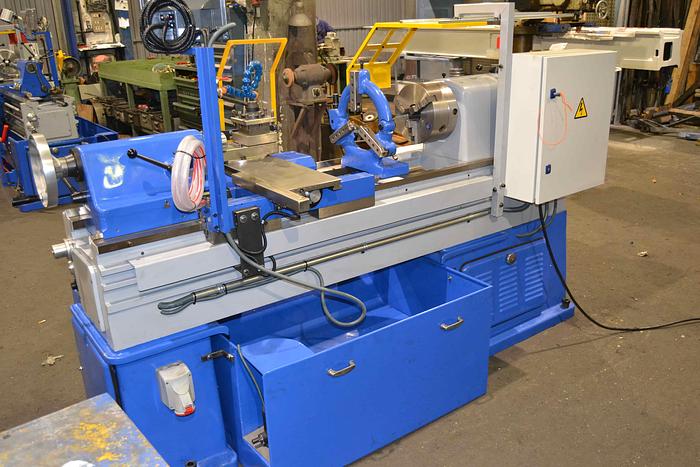

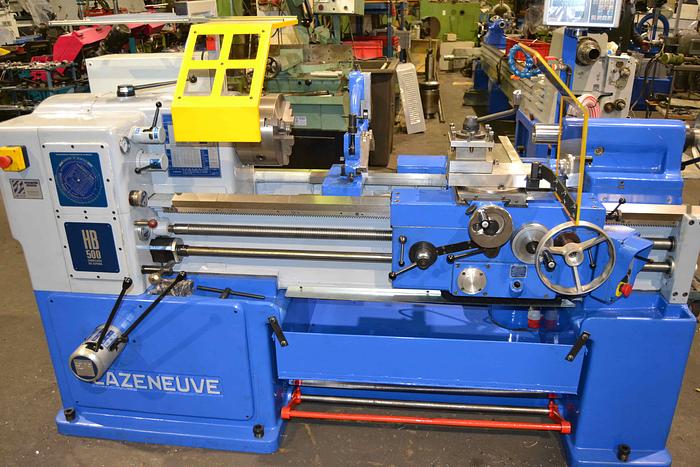

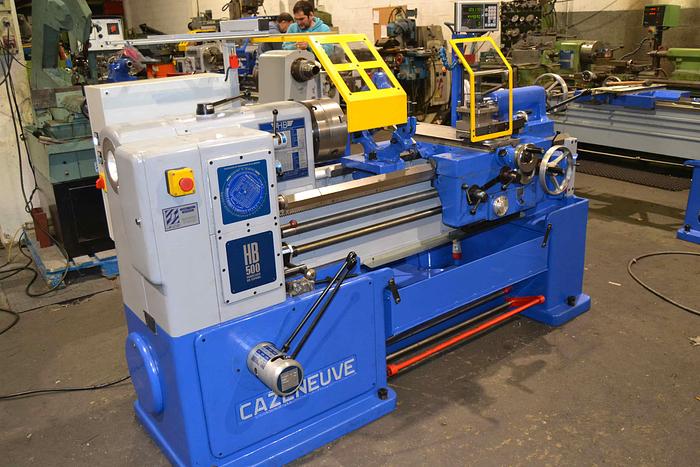

Amutio Cazeneuve HB500 rebuilt lathe. Equipped with 250mm universal chuck. Protections on chuck and carriage and CE certified (RD1215/97). (Optional CE fairing) Optional display and steady rest.
Specifications
| Condition | Used |
| Stock Number | 00005 |
| Diameter admitted on bench | 500mm. |
| Diameter allowed on carriage | 448mm. |
| Diameter admitted without transverse carriage | 220mm. |
| Height of points | 200mm. |
| Distance between points | 1000mm. |
| Inner diameter of the head shaft | 40.5mm. |
| Headstock shaft cone | CM-5 |
| Tailstock cone | CM-5 |
| Width of the bench | 400mm |
| Maximum travel of the cross carriage | 280mm. |
| Maximum course of the steerable carriage | 140mm. |
| Maximum travel of the tailstock reed | 150mm. |
| Number of headstock spindle speeds | 18. |
| Machine weight | 1800Kgs. |
| Machine dimensions | 2405x1175x1295. |
| Warranty | 1 year. |
