LATHE CAZENEUVE HB575 OF 1000-REBUILT
No longer available
LATHE CAZENEUVE HB575 OF 1000-REBUILT
€24,500
Description

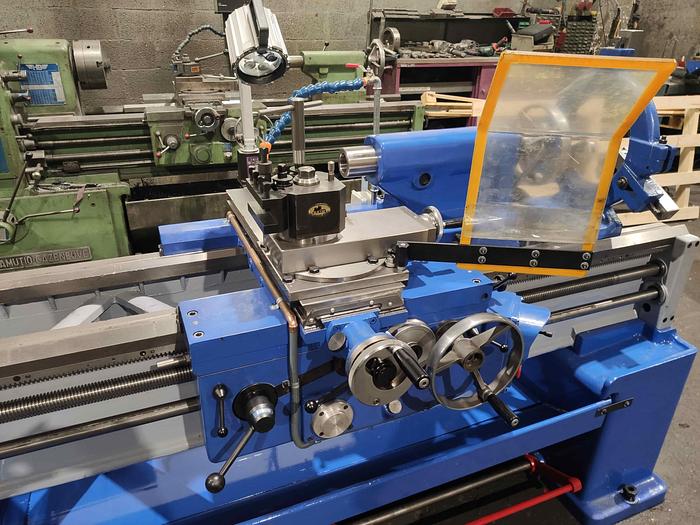

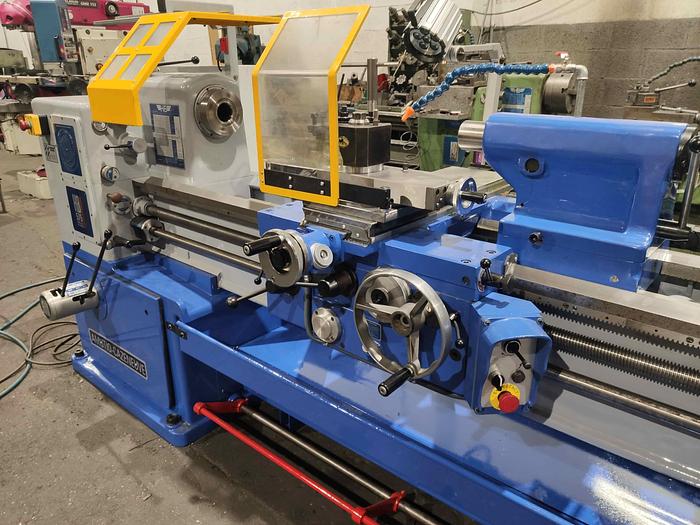

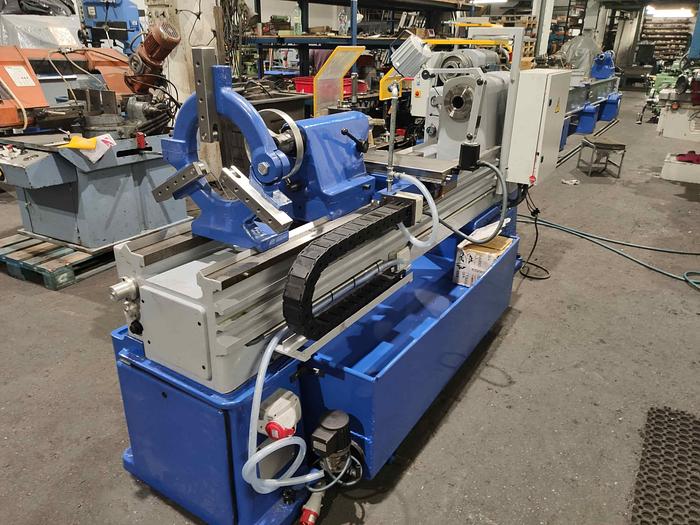

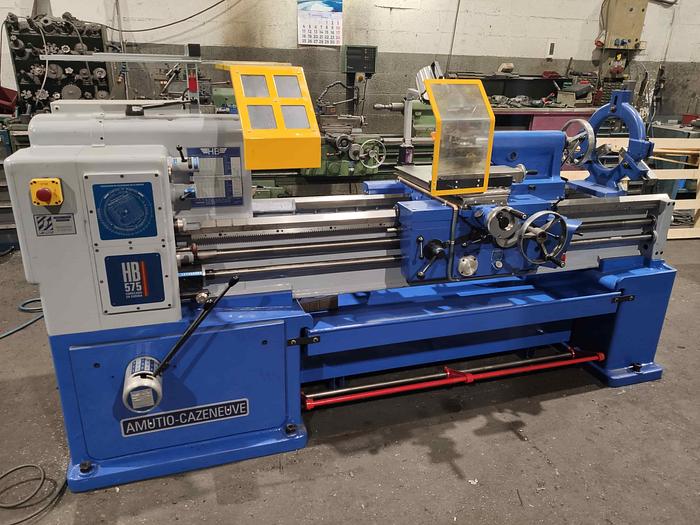

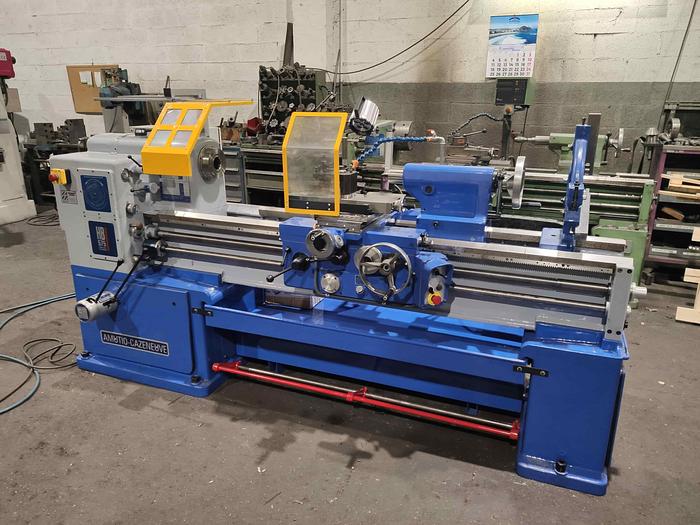

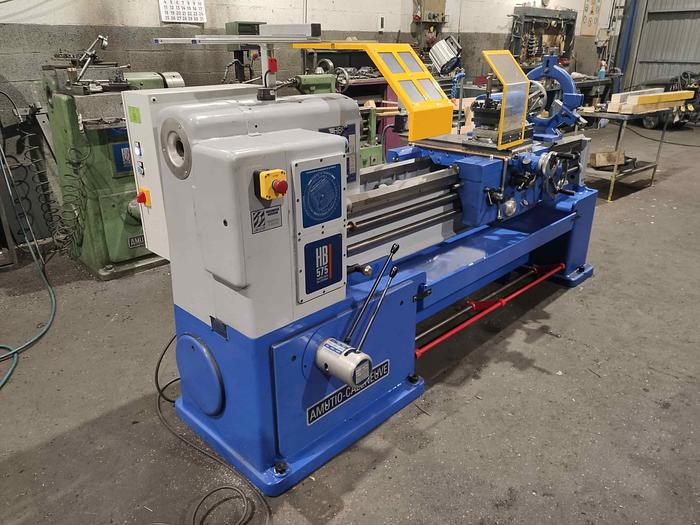

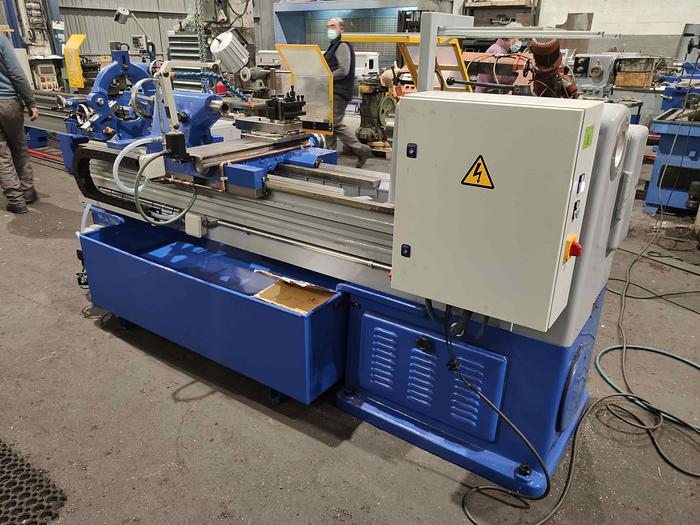

Rebuilt Amutio Cazeneuve HB575 lathe of 1500. Equipped with 250mm universal chuck and steady rest. Protections on chuck and carriage and CE certified (RD1215/97). (Optional fairing) Optional display.
Specifications
| Condition | Used |
| Stock Number | 00008 |
| Diameter admitted on bench | 575mm. |
| Diameter allowed on carriage | 525mm. |
| Diameter admitted without transverse carriage | 300mm. |
| Height of points | 250mm. |
| Distance between points | 1500mm |
| Inner diameter of the head shaft | 51mm. |
| Number of headstock spindle speeds | 18. |
| Tailstock cone | CM-5 |
| Width of the bench | 400mm |
| Maximum travel of the cross carriage | 305mm. |
| Maximum course of the steerable carriage | 140mm. |
| Maximum travel of the tailstock reed | 150mm. |
| Engine power HP | 12,5-10-7. |
| Machine weight | 1900Kgs. |
| Machine dimensions | 2905x1175x1345. |
| Warranty | 1 year. |
