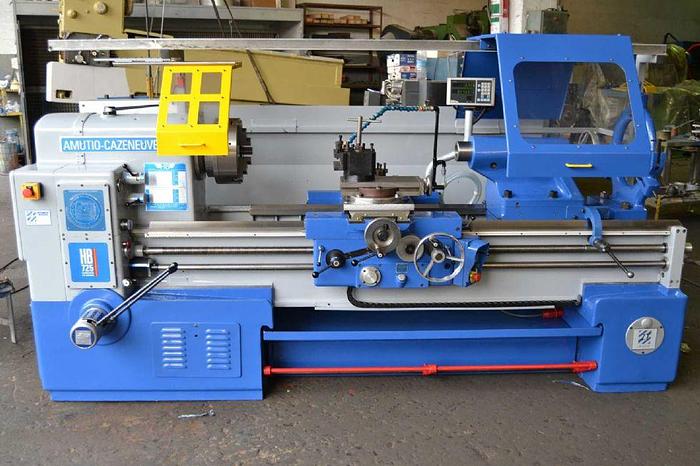

LATHE CAZENEUVE HB725 OF 1500-REBUILT
No longer available
LATHE CAZENEUVE HB725 OF 1500-REBUILT
€28,000
Description

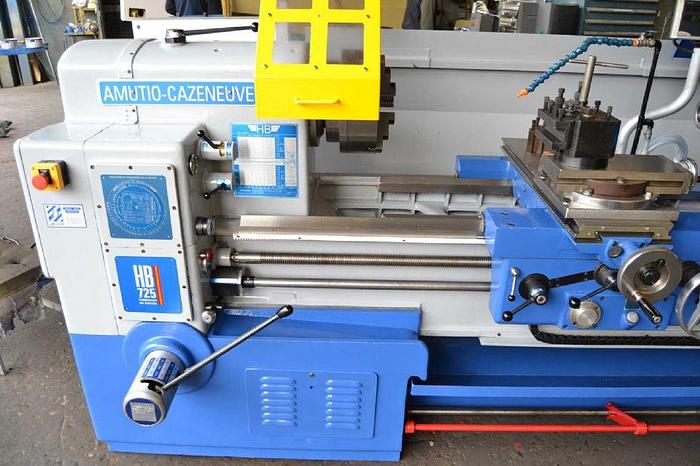

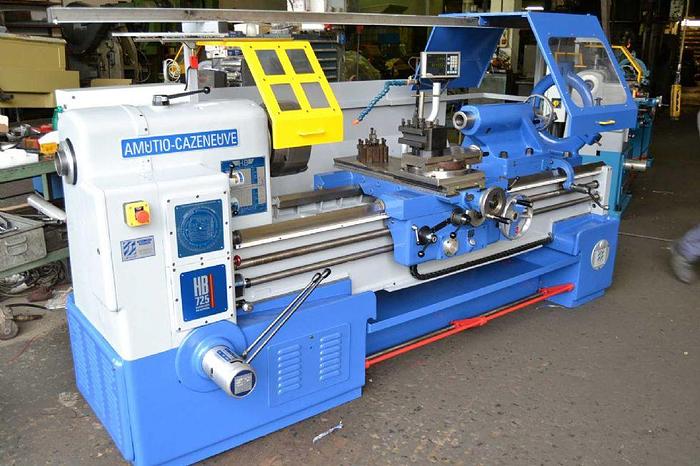

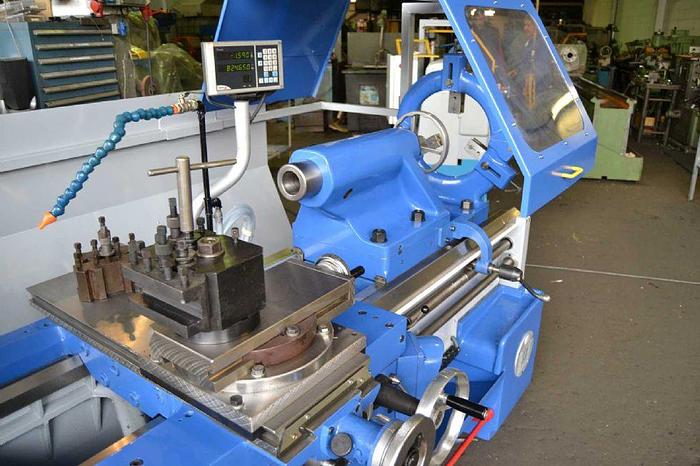

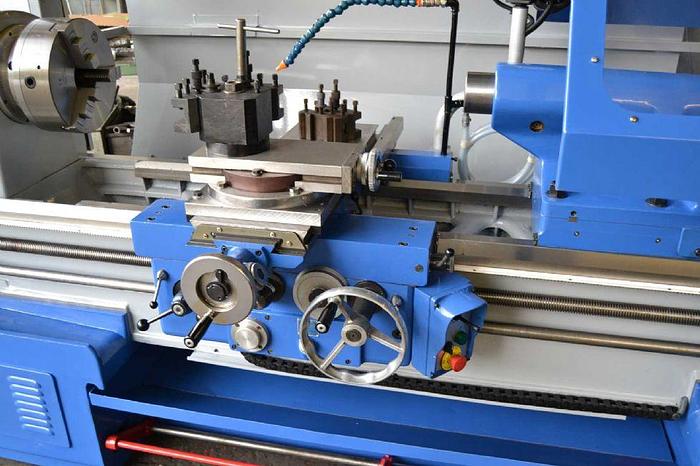

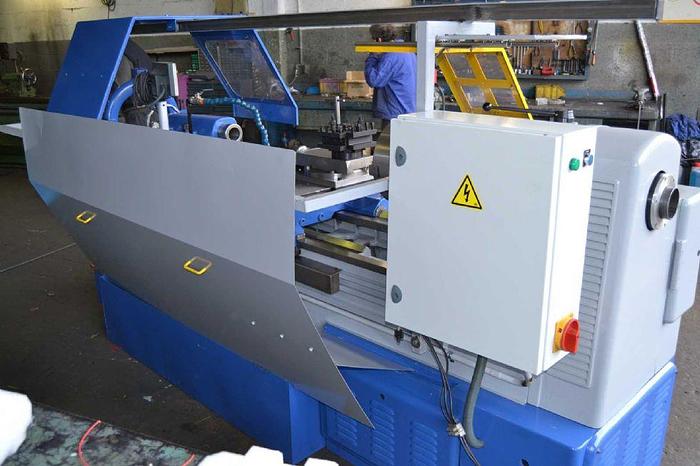

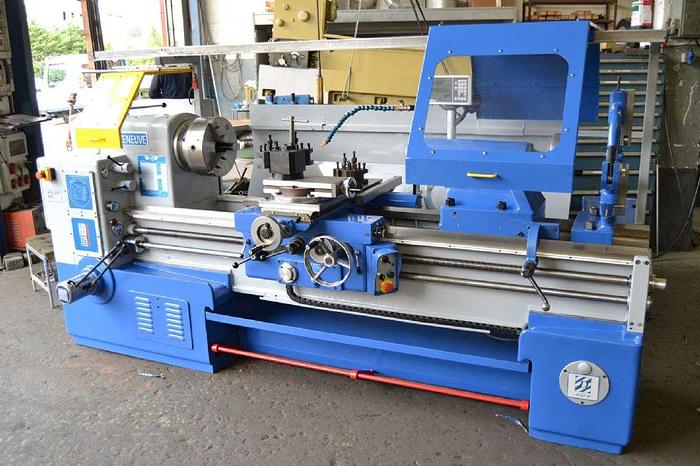

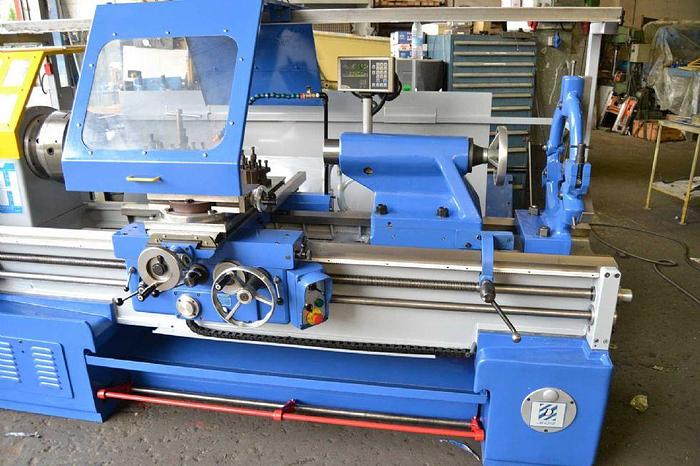

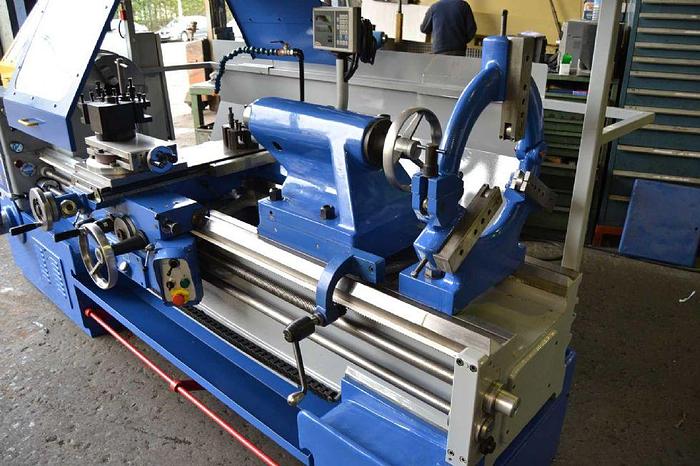

Amutio Cazeneuve HB725 rebuilt lathe of 1500. Headstock spindle taper: Equipped with 315mm universal chuck and steady rest. Shields on chuck and carriage and CE certified (RD1215/97). (Optional fairing) Optional display.
Specifications
| Condition | Used |
| Stock Number | 00012 |
| Diameter admitted on bench | 725mm. |
| Diameter allowed on carriage | 670mm. |
| Diameter admitted without transverse carriage | 400mm |
| Height of points | 315mm. |
| Distance between points | 1500mm |
| Inner diameter of the head shaft | 81mm. |
| Tailstock cone | CM-6 |
| Width of the bench | 505mm. |
| Maximum travel of the cross carriage | 400mm |
| Maximum course of the steerable carriage | 220mm. |
| Maximum travel of the tailstock reed | 235mm. |
| Number of headstock spindle speeds | 18. |
| Engine power HP | 25-20-15. |
| Machine dimensions | 2640x1450x1355. |
| Machine weight | 2700Kgs. |
| Warranty | 1 year. |
